EAST J-Tone 01 by John East VOL BLEND TONE

John East

€219.95

Quantity

Description

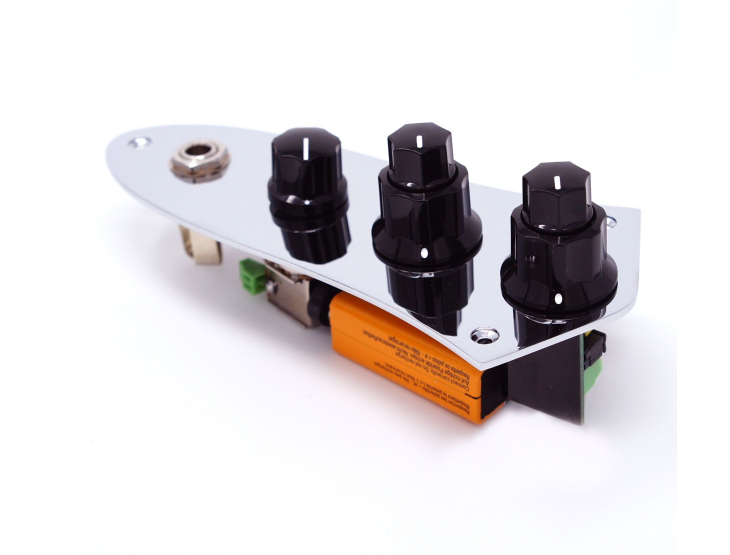

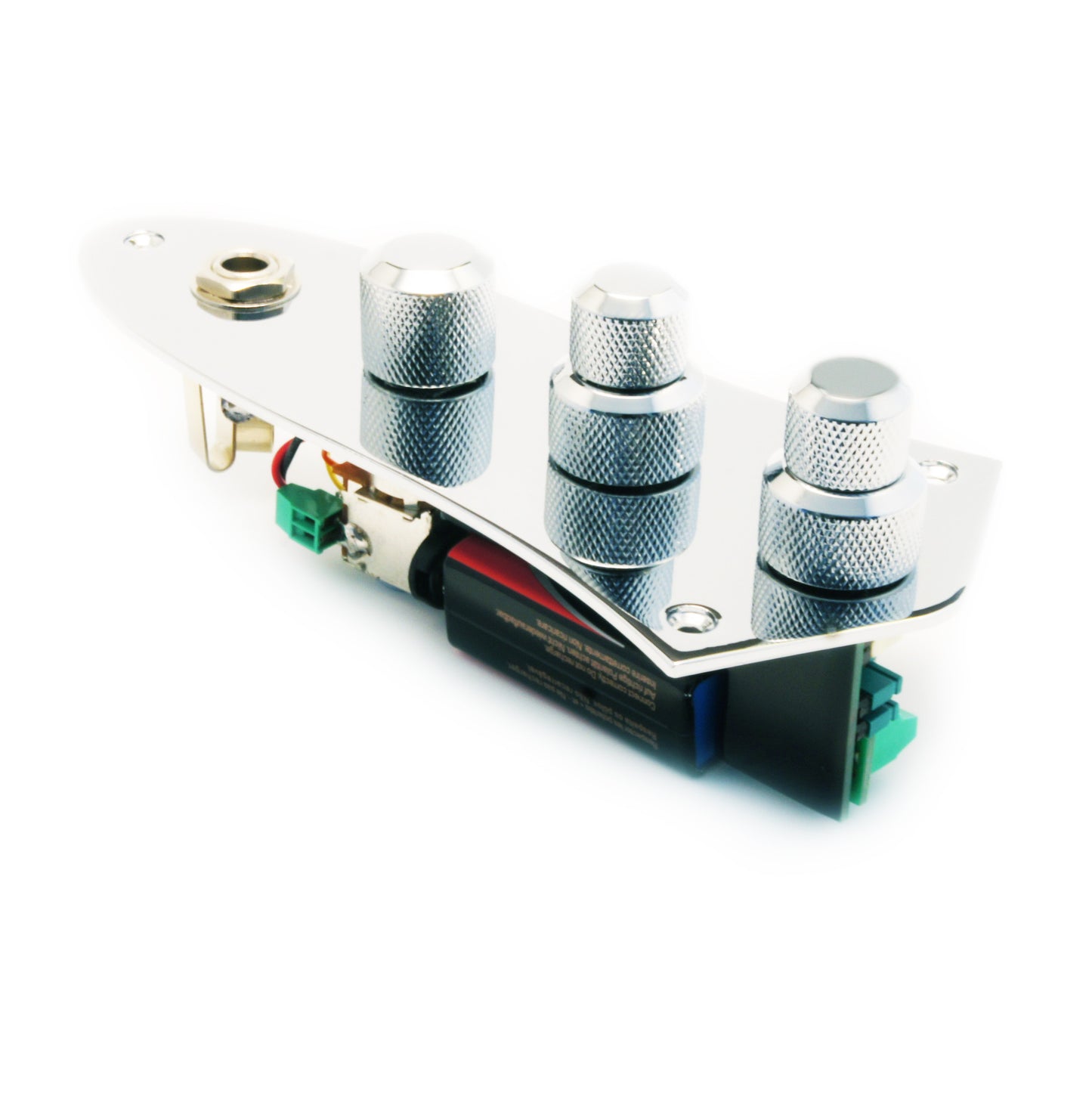

NEU! EAST J-TONE 01

Wie kann ich meinen original Sound erhalten, und trotzdem eine aktive Bass- und Höhenregelung dazu haben, ohne an meinem Jazz Bass Holzarbeiten machen zu müssen? Das war die Frage, hier kommt die Lösung:

Der East J-Tone 01 Preamp bietet die originale passive J-Bass Verdrahtung in Verbindung mit einer hochwertigen aktiven Klangreglung. Die nötige 9-Volt Batterie findet in der Einheit Platz. Der Preamp kann von jedermann leicht ohne Löten und Veränderungen am Instrument eingebaut werden. Die Passiv-Sektion ist verfügar als klassische Volume/Volume/Tone Regelung oder - für diejenigen, die ein Mastervolume bevorzugen, als Volume/Panorama/Tone. Steckbare Kondensatoren ermöglichen die Kalibrierung des Passivtonreglers.

Die Aktivsektion bietet Bass- und Höhenregelung, interne Regler ermöglichen eine Feineinstellung.

Der Einbau ist identisch zur J-Retro:

J-TONE 01 SPECS

BASIC RESPONSE, GAIN & EQ SPEC.

• PASSIVE MODE: Neutral at response in accordance with passive control settings.
• ACTIVE MODE: Neutral at response when Bass & Treble controls are set to their centre clicks.
• GAIN TRIM: Internal Trimmer 0-12dBs setting overall gain of active circuit.
• BASS CONTROL: +/- 18dBs Cut/Boost with internally adjustable shelf frequency 40–200Hz.
• TREBLE CONTROL: +/- 18dBs Cut/Boost with internally adjustable shelf frequency 1kHz – 7.5kHz.

ENGLISH:

We have often been asked, is it possible “to retain the original sound?” of a J style bass, but with a “modern Active EQ?” in the same Preamp, plus “no changes to my bass?”.

In response, we have created the J-TONE pre amp, replicating the authentic original passive wiring of the J style bass with a high spec Active EQ. It’s designed as a direct drop-in replacement, including a place for the battery. It’s easy to t at home using basic tools, no soldering, no physical changes to the instrument*.

The Passive wiring is available as either the classic Volume / Volume / Tone, or for those who prefer a master volume -Volume / Blend / Tone. Plug-in tone caps allow additional ne tuning of the passive tone control.

The Active EQ is simplicity itself, incorporating highly responsive bass and treble controls, taken from our new high end UNI-PRE system. Internal edge wheels allow individual custom voicing for both the bass and treble control spectrums. Instrument qualities can be enhanced in conjunction with tone-shaping to match playing styles.

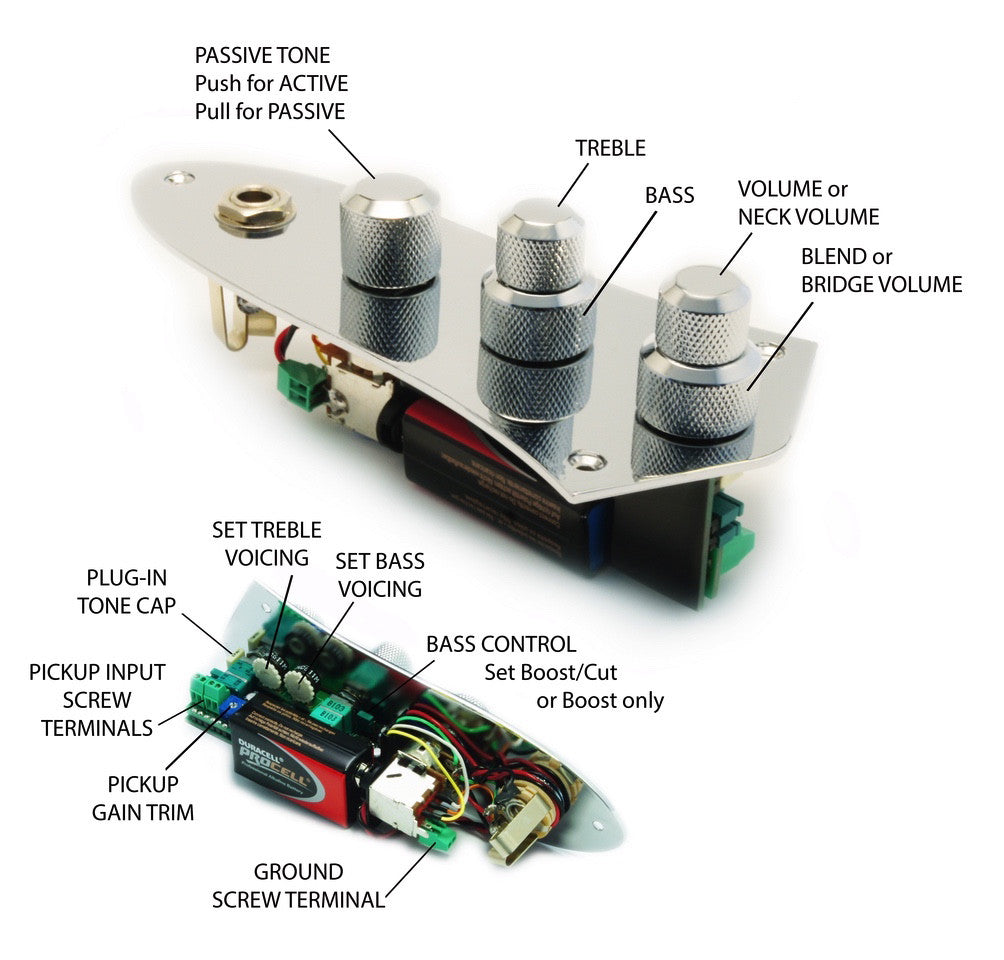

Classic Volume / Volume / Tone passive path version, replicating original J style wiring. • Volume / Blend / Tone version for those who prefer a master volume.
• Push-Pull active/passive on Passive Tone.
• Class A FET input stage for great sound quality, with master gain trim preset adjuster. • Highly responsive Bass and Treble control adjustments in active.

• Frequency Wheels to set the width of the bass and treble spectrums individually.

• Passive Tone is always operational, in both active and passive.

• Passive Tone has plug-in tone cap to allow easy swapping of the cap value for different roll-off frequencies.

• Bass control can be set as boost/cut or boost only, with an internal jumper link setting.

• Screw terminals for all external connections - pickups and grounding, for easy installation.

• Designed as drop-in replacement for standard J electronics with no physical changes to the instrument*.

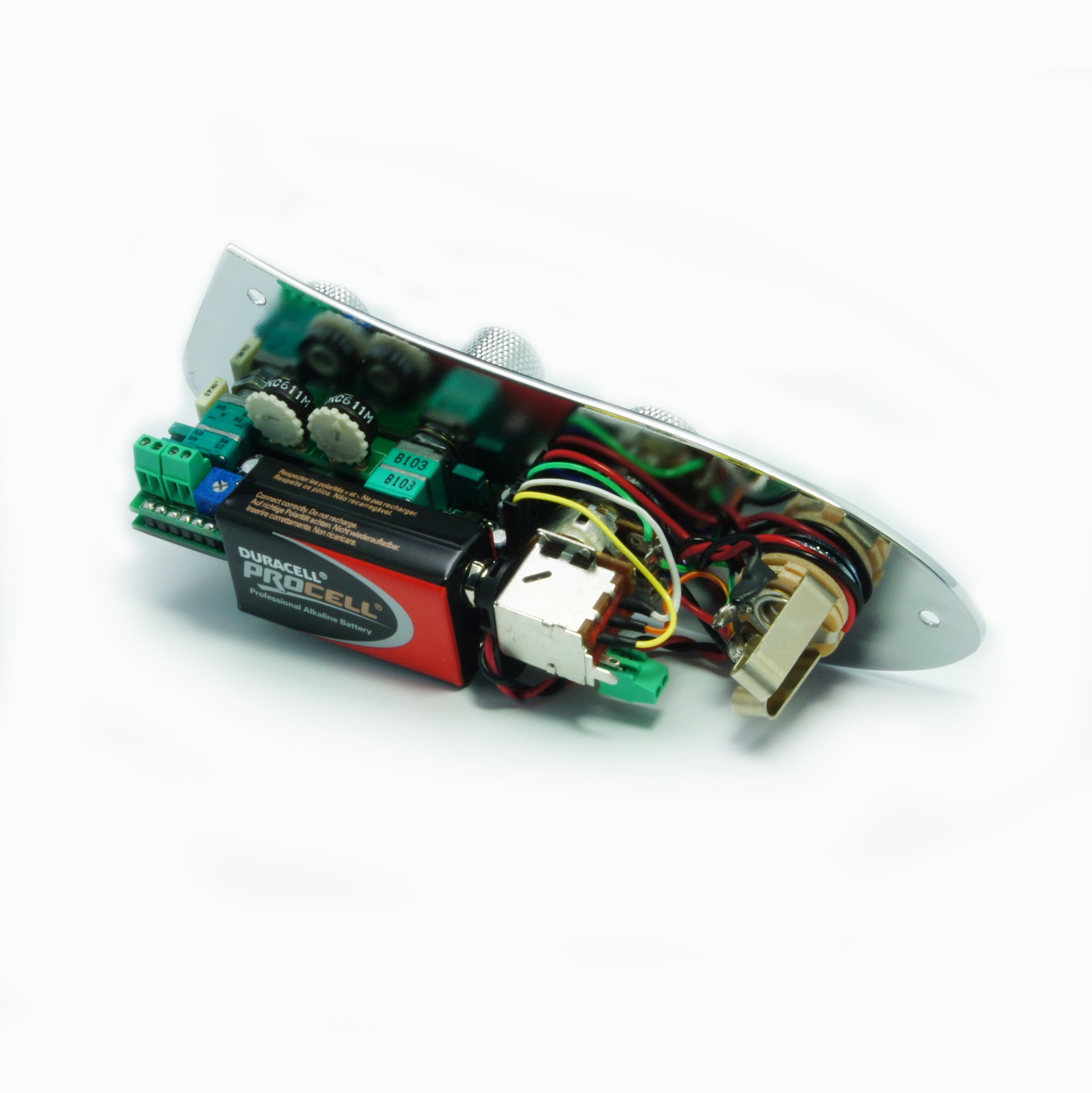

• Design allows 9V Battery to t beneath the preamp in a standard J style bass.

Note: * The J-Tone will fit in the majority of J style basses, but the routing width and depth of cavities does vary, so we can’t guar-antee it. It’s important to check that a 9V battery drops into the cavity close to the jack, and that there’s a depth of 32mm.

BASIC RESPONSE, GAIN & EQ SPEC.
